Product ID : Square Sharp PCD/CBN Grooving Tools
Product Attributes :

- Can be customized;

- Dimension tolerance: <+-0.005mm

Product Description

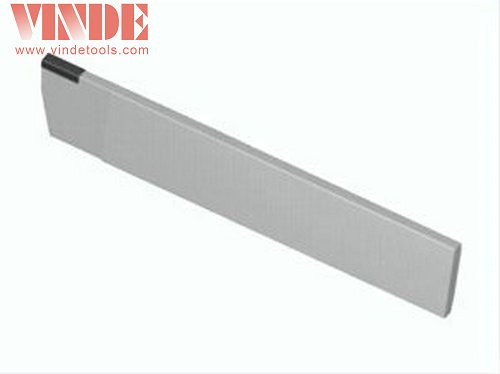

Square Sharp PCD/CBN Grooving Tool

- Can be customized;

- Dimension tolerance: <+-0.005mm

PCD and CBN grooving tools are successfully used in many automobile and engineering industries for grooving / machining of aluminum and non-ferrous and ferrous metals. Weino grooving tools are offered in cutting widths ranging from 0.80 to 8.00 mm with carbide shanks. dimensions, tolerances and cutting geometries of the specific application.


Applications:

* Grooving in aluminum pistons and non ferrous parts
* Direct machining of precast cylinders without preliminary machining.
* Where ever perfect form and high accuracy are needed

According to the need of our customers, we can design and manufacture the external turning tools with different specifications, by changing the sizes of the cutter arbor, rake angle, clearance angle, tool cutting edge angle, tool minor cutting edge angle, nose angle, cutting edge form and the width of the chamfer.

g (4).jpg

g (5).jpg
