RCGX060400 RCGX060600 RCGX060700 RCGX090700 RCGX120700 RCGX150700 RCGX151000

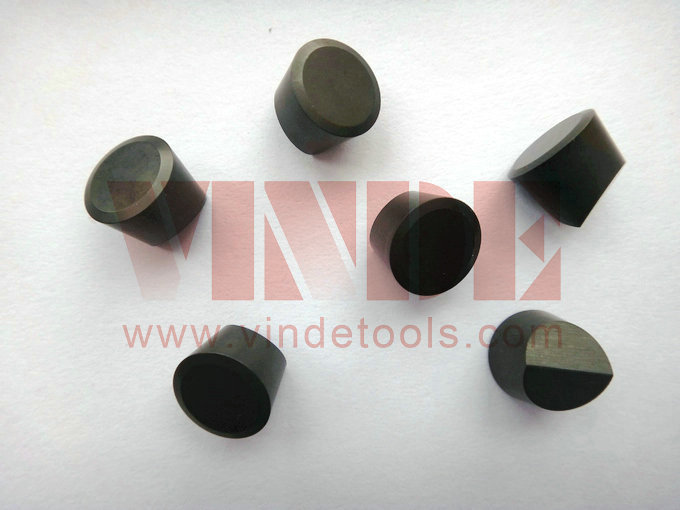

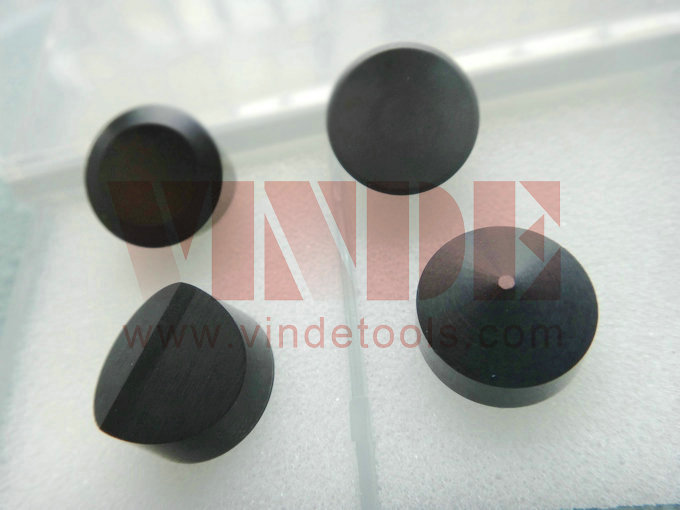

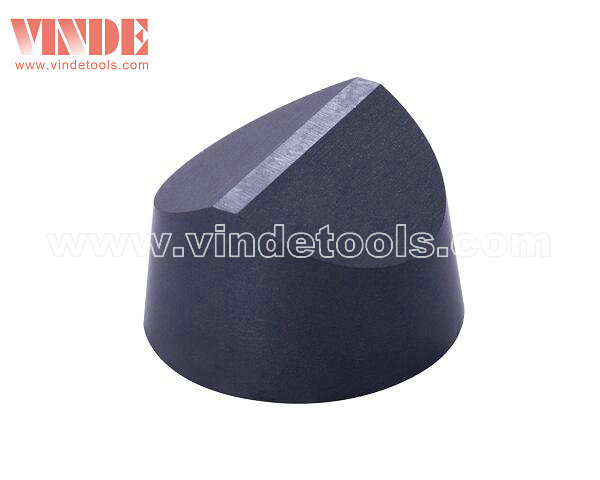

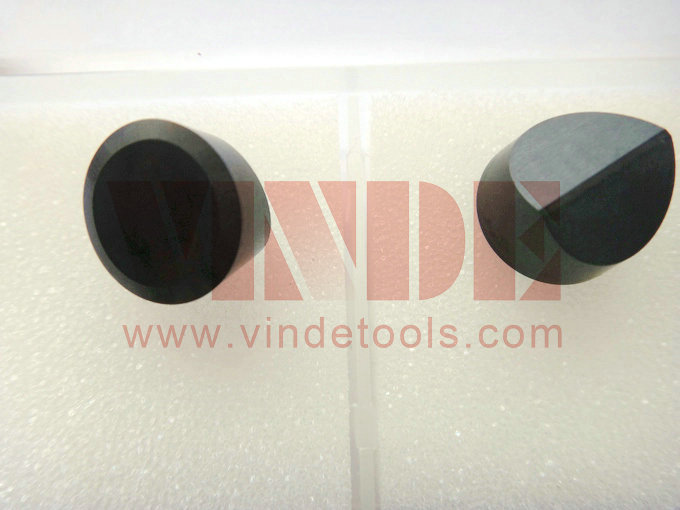

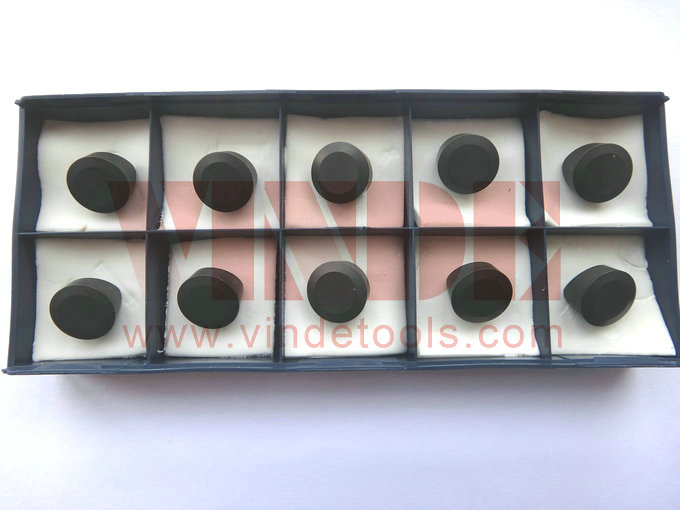

Solid CBN Inserts - RCMX/RCGX
- Hot Sizes: RCGX060400; RCGX060600; RCGX060700; RCGX090700; RCGX120700; RCGX150700; RCGX151000
Solid CBN Inserts are made of CBN micro powder and bonding material under high temperature and high pressure, with no carbide substrate. They are widely used for machining the material of cast irons, hardened steels, powder metals, like brake disc, brake drum, roller, gear, cylinder block, engine block, pumps etc.
Advantages:
1. High hardness, toughness and wear resistance;
2. High cutting speed and superior finish machining;
3. Work efficiency of turning improved by 5-10 times when compared to grinding;
4. Top high quality as world famous brands.
| ||||||||||
Type | Dimensions(mm) | PCBN Grades | ||||||||
ISO | L | ￠i.c | s | r | WBN11 | WBN20 | WBN25 | WBN30 | WBN50 | WBN60 |
RCGX 060400V | 6.35 | 6.35 | 4.76 | ● | ● | ● | ● | |||
RCGX 060600V | 6.35 | 6.35 | 6.35 | ● | ● | ● | ● | |||
RCGX 090700V | 9.525 | 9.525 | 7.94 | ● | ● | ● | ● | |||
RCGX 120700V | 12.7 | 12.7 | 7.94 | ● | ● | ● | ● | |||
RCGX 150700V | 15.875 | 15.875 | 7.94 | ● | ● | ● | ● | |||
RCGX 151000V | 15.875 | 15.875 | 10.0 | ● | ● | ● | ● | |||
RCGX 191000V | 19.05 | 19.05 | 10.0 | ● | ● | ● | ● | |||
RCGX 201200V | 20.0 | 20.0 | 12.0 | ● | ● | ● | ● | |||
RCGX 251200V | 25.4 | 25.4 | 12.0 | ● | ● | ● | ● | |||
